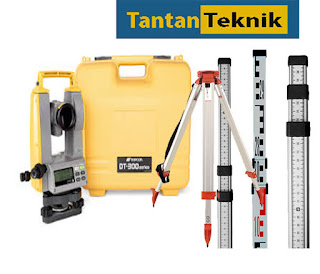

Paket Penjualan Theodolite Topcon DT-305L
- 1 x Unit Theodolite Topcon DT-305L
- 1 x Alumunium Tripod
- 1 x Rambu Ukur
Theodolite Digital Topcon DT-305L
kekuasaan
• Panduan laser presisi tinggi yang nyaman
• Desain produk baru dengan kualitas premium Topcon
total komponen stasiun
• Sensor kemiringan tertanam dalam model 5 ”
• Perlindungan debu IP66 yang sangat kuat dan hujan lebat
Speksifikasi Digital Theodolite Topcon DT-305L
Telescope
- Length : 152 mm
- Aperture : 45 mm
- Magnification : 30X
- Image : Erect
- Field of view : 1°30’ (26 m/1,000 m)
- Resolving power : 2.5"
- Minimum focus : 1.0 m
- Stadia ratio : 100
- Stadia constant : 0
Angle measurement
- Method : Rotary absolute encoder
- Detecting :
- Horizontal: 1 sides
- Vertical: 1 sides
- Minimum display : 1" (0.0002 gon/0.01 mil) / 5" (0.001 gon/0.1 mil) (selectable)
Display Unit : 2 sides
Tilt angle compensation
- Type : Automatic vertical compensator
- Range of compensation : ±3' (±0.0555 gon)
- Compensation constant : Can be changed (compensation is done at the same time with vertical angle 0 point)
Optical plummet
- Magnification : 3X
- Minimum focus : 0.5 m
Sensitivity of levels
- Circular level : 10’ /2 mm
- Plate level : 30"/ 2 mm
Temperature
- Operating temperature range : -20 to 50°C (-4 to 122°F)*2
- Storage temperature range : -30 to 60°C (-22 to 140°F) (no condensation)
Environmental durability
- Dust and water protection : IP66 (IEC 60529: 2001)
- Power Supply (Standard)
- Power source : 4 AA alkaline batteries
Working duration at 20°C (Standard)
- Theodolite only : about 230 hours
- Laser only : about 80 hours
- Theodolite and laser : about 55 hours
Power Supply (Option)
- Power source : BDC71 (Optional accessory)
Working duration at 20°C (Option)
- Theodolite only : about 300 hours
- Laser only : about 100 hours
- Theodolite and laser : about 70 hours
Tribrach
- Type : Detachable
Laser-pointer
- Signal source : Red laser diode (633 nm)
- Maximum output : 0.6 mW
- Laser Class : Class 2
- Laser beam range : 50 m (in daylight)
Others
- Size (with handle) : 173 (D) X 181 (W) X 318 (H) mm (Display on both sides)
- Weight : 4.1 kg (9.04 lb) (with batteries and battery holder)
Beli Theodolite Digital Topcon DT-305L dengan
harga ekonomis dan cari produk lainnya dari kategori Alat Survey,GPS,
Instruments Digital, Alat Teknik, Sirine. Gratis biaya pengiriman untuk
wilayah Jakarta dan dapat dikirim ke seluruh Indonesia. Dapatkan hanya
di toko online TantanTeknik, belanja online mudah dan aman. Harga Terbaik hubungi 0822.1729.4199 atau email atantan.margasetia@gmail.com
