Total Station South NTS-332R10 Akurasi 2detik Laser 1000m



 TantanTeknik / Marga Setia

Tempat Jual Alat Survey Total Station Murah di Jakarta Harga murah Babarayaan, Kami Menjual Alat Survey Total Station berbagai merk seperti dari merk NIKON, SOUTH, RUIDE, TOPCON, SOKKIA, LEICA, HORIZON, SPECTRA, MINDS, TITAN, GINTEC dll

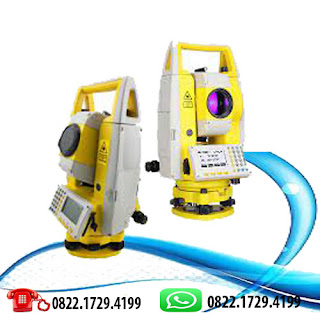

TOTAL STATION SOUTH NTS-332R10

    ● 2” Angle Accuracy
    ● Upgraded EDM with 1000m non-prism range
    ● Simple but practical onboard software
    ● Easy-to-read LCD screen
    ● Easy connectivity by USB and Bluetooth*

Features
Fast and Powerful Reflectorless EDM
- Fast and accurate 1000m reflectorless range.
- Fast distance measurement of 1.2s.
- Smaller laser pointer for minimal measuring error.

Easy-to-Read LCD Screen
- With ergonomic keypad, NTS-332R10 provides a comfort user experience when operation, regardless of environment.

Simple But Practical Onboard Software
- NTS-332R10 offers a quick response and clear feedback for its onboard software, like data input, measurement, stake out and roads.

Easy Connectivity
• USB memory stick
• Bluetooth transfer*

Speksifikasi South NTS-332R10 Total Station Reflectroless
Distance Measurement

• Reflectorless : 1000m
• Single Prism  :    5000m
• Accuracy: Non Prism 3+2ppm
• Accuracy: Prism 2+2ppm
• Sheet :    3+2ppm
• Measurement Time : 1.2s in fine  | 0.2s in tracking
• Atmospheric Correction : Manual input, Auto correction
• Prism Constant     Manual input, Auto correction
• Temperature Correction : Manual input, Auto correction
• Distance Reading : Max: 99999999.999 Min: 1mm

Angle Measurement

• Accuracy : 2"
• Method : Absolute, continuous
• Disk Diameter : 79mm
• Detection Method : V: Dual, H: Dual
• Angle Reading : Min: 1"


Telescope

• Image : Erect
• Tube Length : 152mm
• Effective Aperture : 45mm (EDM 47mm)
• Magnification : 30x
• Field Of View : 1°30'
• Resolving Power : 3"
• Minimum Focus Distance : 1.5m
• Muitiple/Additive Constant : 100/0


Keyboard And Display

• Keyboard : Alphanumeric 28 Keys
• Display  : 2.7 inches Black & White LCD
• Resolution : 160*96 dpi
• Position  : Face 1, Face 2


Operation System

• Operation System : None
• Processor : None
• Memory : 16000 points


Interface

• WIFI : None
• Bluetooth : None
• SD Card : None
• Serial Port : None
• Mini USB : None
• Mirco USB : Yes
• USB Flash Disk : None
• SIM Card : None


Compensator

• System : Liquid, Dual axis
• Working Range : ±6'
• Accuracy : 1"

Plummet

• Laser Plummet (Default)
• Accuracy : ±1.5mm @1.5m
• Laser Brightness : 5 levels adjustable
• Wavelength : 635nm
• Laser Class : Class 2
• Laser Power : 0.5mW
• Optical Plummet : (Optional)
• Image : Erect
• Magnification : 3x
• Focusing Range : 0.5m ~ ∞
• Field Of View : 5"
• Accuracy : -

Battery

• Type : Lithium
• Voltage : 7.4V
• Operating time : 8 hours

Vial

• Plate Vial : 30" /2mm
• Circular Vial : 8' /2mm


General

• IP Rate : IP54
• Temperature Range : -20°C -- +50°C
• Dimension : 206*200*353mm
• Weight : 6.0kg
• Others : -
• Others : -
• Others : -

Paket Penjualan South NTS-332R10

• 1x Unit South NTS-332R10
• 2x Allumunium Tripod
• 1x Prisma Polygon
• 1x Single Prisma
• 1x Range Pole
